Specifications:
SIZE: 25NB – 400NB
RATING: 150, 300, 600, 900 & 1500 Class
END CONNECTION: Flanged, Butt-weld & Socket weld
MATERIAL: Cast Steel, Stainless Steel, Alloy Steel, Hast alloy, etc.
Optional:
Positioner (Pneumatic, Electro Pneumatic & Smart)
Pressure Transmitter
I/P Converter
Solenoid Valve
Limit Switches
Air Filter Regulator
Manual Hand Wheel
Available with Direct and Reverse Acting Actuators

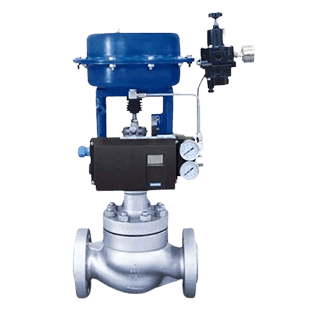

Control Valves
Control valves are utilized most commonly to combine two flows or to
divert one flow into one or two outlets. The three-way valve package is
exactly accurate and befitted to address the space limitations of the OEM
industry. They are designed to succeed and perform the functions of two
single ported control valves acting in contrary directions, in converging or
diverging liquid flow. They can be used to control the circulation of water,
oil, seawater, or other liquid for heating or cooling purposes including
heat exchange bypass control.
Standards:
Single Seated, Globe, Unbalanced Design
Used valves for all major Fluids, Working conditions & Applications.
Very easy to maintain.
Single Seated, Globe, Balanced Design
Excellent valve for Liquid, Air & Clean Gases.
Has very high stability and better response
Single Seated, Globe
Suitable for High working pressure & High-pressure Drop
Double Seated Globe
Used for High Flow Capacity (CV Value) & High-Pressure Differential such as Boiler feed Water, etc.

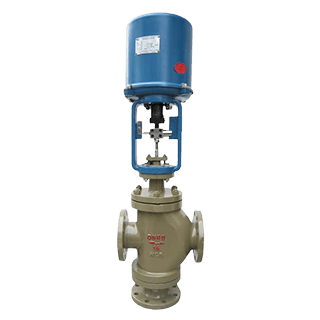

3 Way Mixing & Diverting
Used for Thermic Fluid, Steam, Cooling Water, etc. where excess amount of fluid has to be by-passed.
Advantages of Control Valves:
Accelerated and efficient functioning.
Reliable.
Long-lasting service life.
The design is Compact, to promote minimum space usage.
Minimal pressure drop.
Limitations of Gate Valves:
Control signal demands are on throughout its working period.
