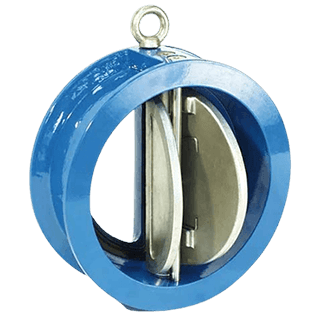

Dual Plate Check Valve uses two spring-loaded plates joined on a pivotal hinge pin. When the flow reduces, the plates close by the action of torsion spring before flow reversal takes the spot. This design allows the twin benefits of No Water Hammer and Non-Slam together. Dual Plate Check Valve can be known as Zero Velocity Valve.
Types:
Check Valve Lug
Check Valve Flanged
Dual Plate Check Valves
Dual Plate Check Valve is an all-purpose nonreturnable valve that is much Robust, more moderate in weight, and more diminutive
in size compared to a traditional swing check valve or lifts check valve. Dual Plate Check Valve design is the result of efforts to
answer the obstacles correlated with traditional swing check valves and lift check valves.
SPECIFICATIONS:
Range:
Valve Type | Class Rating | Size Range |
Check | 150# | 2″ to 24″ |
Check | 300# | 2″ to 24″ |
Check | 600# | 2″ to 16″ |
Design Standards:
DESIGN STANDARD | API 594 / API 6D |
TESTING STANDARD | API 598 |
BODY MATERIAL | CI, WCB, CF8, CF8M & OTHERS |
CLOSER PLATE | CS 304, 316 |
SEAT | METAL TO METAL, NITRILE, EPDM |
Note: Other Material Arrangement Depending upon the Customer Request.
