Benefits:
More comfortable to mount and center, and is also mechanically stronger in construction than lug or wafer design, making it suitable for heavy-duty, large flowhandling scenarios.
Types:
Double Flanged Type Gear Operated
Double Flanged Lined Gear Operated

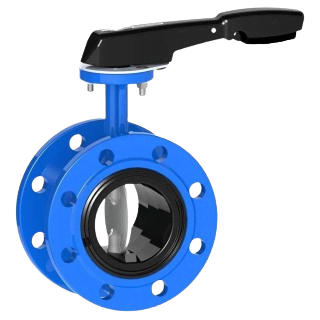

Double Flanged Butterfly Valves
Double Flange Butterfly valves are center disc design and offset disc design. Butterfly valves are proper for simple as well as
extremely complicated ones. Our Butterfly valves are rubber lined, PTFE lined. Butterfly valves are suitable as either open/closed or
rare utilization in controlling valves. They are obtainable in a broad category of sizes, materials, and models. Butterfly valves can be
operated with variable controls actions like electric / pneumatic actuator alternatives.
SPECIFICATIONS:
BODY | IS 210 GR FG 200 / 220 / CS ASTMA 216 GR WCB / SG IRON / SS 304 / SS 316 |
DISC | IS 210 GR FG 200 / 220 / CS ASTMA 216 GR WCB / SG IRON / SS 304 / SS 316 |
SEAT | MOUDED / REPLACEABLE NITRILE / EPDM / SILICON / VITON / HYPOLON / PFA / PTFE |
SHAFT | AISI 410 / AISI 304 / AISI 316 |
MFG STD | BS 5155 / API 609 / ISO 5752 |
INSP & TEST STD | BS 6755 / BS 5155 |
OPERATION | MANUAL GEAR OPERATED / PNEUMATIC ACTUATOR / ELECTRIC ACTUATOR |
ENDS | FLANGED END TO PN 10 / PN 16 / ASA 150# |
HYD TEST PRESSURE | BODY : 225 PSIG (16 KG/CM2) SEAT : 165 PSIG (11.5 KG/CM2) |
SIZE RANGE | 25 NB TO 1200 NB (1″ to 48″) |
